Mid-year is when design sketches turn into real decisions. If you are planning a tiny home or backyard cabin, the trailer choice you make now will set ceiling heights, weight limits, towability and budget. The good news, there are only a few paths to compare, and once you match your layout and finished weight to the right rating, the rest falls into place.
At Tiny Homes by Hangan in Bayswater, trailers are custom fabricated with Hangan Steel to suit your plan, not the other way around. Below is a quick buyer’s guide with clear comparisons, pricing and simple steps to help you lock this in early.
A quick note on scope, this is not a technical 101. It is a practical, design-led guide focused on what you care about most, head height, weight distribution, towing around Victoria and budget.
Flat Top vs Drop Deck, how to choose
Think of the trailer as the foundation of your home’s comfort and compliance. Two main options cover most builds.

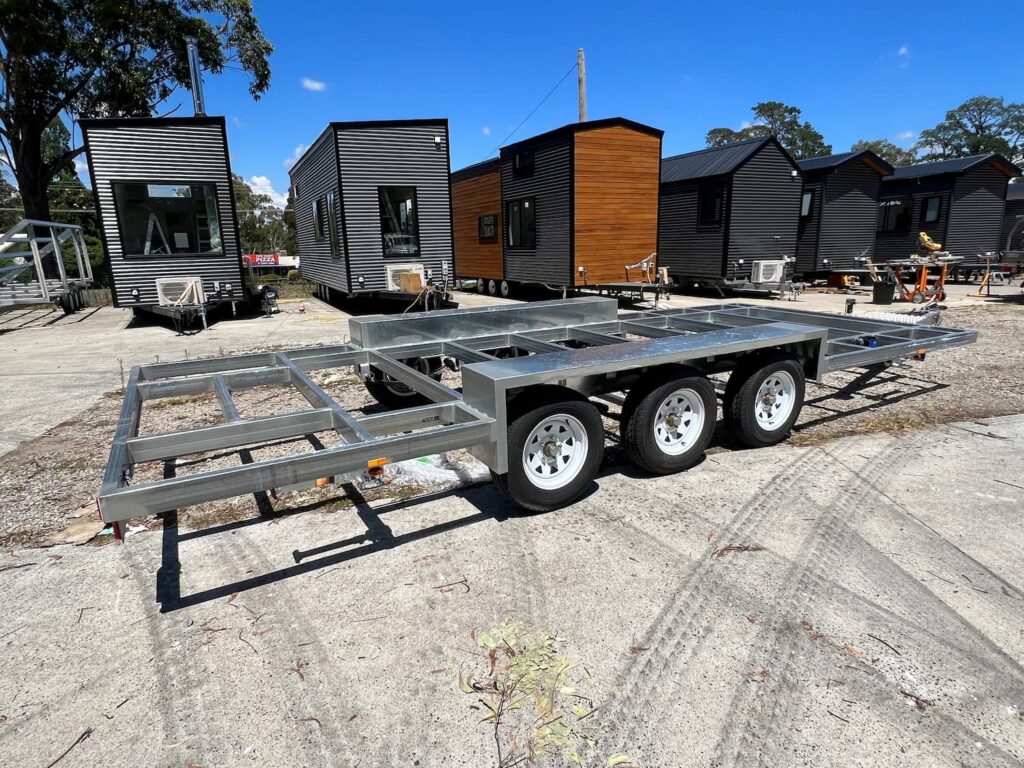

Flat Top, a level platform from end to end with no wheel boxes. It gives you maximum freedom to place doors, kitchens and furniture without working around raised wheel arches. It is simple to tow and easy to frame on.
Drop Deck, lower between the wheels. The floor drops inside the chassis rails which can add precious internal head height, especially under a loft, while still keeping a road-legal overall height.
In words, picture two outlines. The Flat Top is a straight line from front to back. The Drop Deck dips down between the axles, so your internal floor sits lower in that central span. That dip is what creates extra head space without pushing your roofline higher.
Which is best? Choose Flat Top if layout flexibility and straightforward framing are your top priorities. Choose Drop Deck if you want more head height for a loft, taller occupants or a roomier feel under a mezzanine.
Can a Drop Deck really give me more head height?
Yes, and you feel it most where it counts, under-loft zones and circulation areas. By lowering the floor between the wheels, the Drop Deck effectively increases the floor-to-ceiling dimension inside while respecting overall height limits. Taller clients often choose Drop Deck to avoid crouch points at loft entries. If your design includes compact stairs and a generous loft opening, the Drop Deck helps you keep comfortable riser heights and safer access.
Matching trailer rating to finished weight
Trailer rating must meet or exceed your finished weight, including structure, cladding, glazing, cabinetry, appliances, water tanks and belongings. A simple way to think about it:
- 3 Tonne dual-axle, suited to compact studios and lighter DIY shells.
- 3.5 Tonne dual-axle, for small homes with modest fit-out.
- 4.5 Tonne tri-axle, the sweet spot for many 6 m to 9 m homes where kitchens, bathrooms and storage add up.
- 10 Tonne truck-axle, used on 11 m family-scale builds like Cradle Mountain.
Weight distribution matters just as much. Aim to place heavy items over or just forward of the axles, water tanks, batteries, appliances and stairs. This steadies the tow and protects your frame. Hangan’s trailer drawings show cross-members and penetrations aligned to these loads so you can maintain continuous insulation and keep services tidy.
Towability around Victoria and registration basics
Towing capacity and endorsements vary by vehicle and licence class. In Victoria, your tow vehicle must be rated to the Aggregate Trailer Mass (ATM) and your coupling, brakes and break-away systems must comply. Smaller dual-axle trailers can be towed by capable utes and SUVs, while 4.5 Tonne tri-axle and 10 Tonne truck-axle builds require appropriately rated vehicles and drivers. Registration is available as a registerable moveable dwelling or custom caravan depending on specification. If you plan frequent moves, tell us early so we detail tie-down points, road lighting and brake setups for smoother long runs.
For a deeper look at compliant bases and options, see our page on a road-legal tiny house trailer in Melbourne for context before you shortlist models.
What about budget, real trailer prices
Here are current retail figures used for client budgeting, Flat Top vs Drop Deck:
- 3 Tonne dual-axle, Flat Top $9,490; Drop Deck $9,990
- 3.5 Tonne dual-axle, Flat Top $10,790; Drop Deck $11,290
- 4.5 Tonne tri-axle, Flat Top $13,490 to $15,490; Drop Deck $13,990 to $15,990 depending on spec
- 10 Tonne truck-axle (11 m), Flat Top $41,490; Drop Deck $42,490
Expect a Drop Deck uplift of about $500 on lower ratings and $1,000 on the 10 Tonne base. The return is the added head height that can let you design a loft you actually enjoy using.
Quick comparisons you can feel
Ceiling height for lofts
- Flat Top, works well with thoughtful stair and loft detailing, but expect tighter crouch points under the loft.
- Drop Deck, more generous head height under lofts and at entries, a noticeable comfort upgrade for taller occupants.
Weight distribution
Both allow good load placement, but Drop Deck’s lower floor can make underfloor tank locations more flexible inside the main span.
Towability
- Flat Top, simplest shape and slightly lighter like-for-like.
- Drop Deck, similar tow feel when balanced correctly, with the bonus of interior height gains.
Budget
- Flat Top, the most cost-effective base.
- Drop Deck, modest premium for a meaningful comfort benefit.
STEP guide, picking your trailer early
STEP 1, book a Bayswater tour
Walk the line, step on a Flat Top and a Drop Deck in person. Bring site access photos and a short wish list.
STEP 2, request preliminary drawings
Ask for a plan sketch with floor heights and a loft section. Seeing the stair and loft headroom on paper makes the choice obvious.
STEP 3, estimate finished weight
List heavy items and select a likely rating, 3T, 3.5T, 4.5T or 10T. We will sanity check the numbers.
STEP 4, confirm tow and registration path
Tell us how often you plan to move. We will align brakes, axles and lighting to Victorian road rules.
STEP 5, lock specification and book fabrication
A placement deposit secures your production spot with Hangan Steel. Cross-members and service penetrations are set to your layout.
STEP 6, plan services early
Electrical loads, plumbing penetrations and off-grid conduits are positioned before frame-up for a clean, water and weatherproof result.
STEP 7, final review
We verify tie-downs, balance and coupling height, then you are set for delivery and siting.
Proof our clients feel the difference
“Quality workmanship and a team that listens. My dream home on wheels is complete and the finish is exceptional.”
“Professional, responsive and friendly, they made the complex parts feel easy.”
We hear this often, and we are proud that the trailer conversation at the start pays off in daily comfort.
Gentle CTAs to keep you moving
- Book a factory tour to compare bases and see builds at different stages.
- Ask for trailer drawings with a simple loft section so you can decide Flat Top vs Drop Deck in minutes.
- Prefer a backyard workspace first, explore our backyard cabins and studios to see sizes that suit Melbourne blocks.
If you want a broader view of design, models and pricing paths, start with a trusted tiny house builder in Melbourne and talk through your priorities with the team.
FAQ, quick answers
What kind of trailer is best for a tiny house?
Choose Flat Top for layout freedom and cost efficiency. Choose Drop Deck if you want more head height for a loft and taller users.
Can a Drop Deck really give me more head height?
Yes. The lowered floor between the wheels increases internal floor-to-ceiling space without lifting overall height.
How do I match trailer rating to finished weight?
Add up structure, fit-out, appliances, water and belongings, then choose the next rating up. Many 6 m to 9 m homes land on a 4.5 Tonne tri-axle.
Can anyone tow a small trailer, and what about registration?
Towing depends on your licence, vehicle rating and brake setup. Registration in Victoria is available for compliant trailers as moveable dwellings or custom caravans.
What is the cost difference between trailer options?
Drop Deck typically adds about $500 on smaller ratings and $1,000 on 10 Tonne truck-axle bases compared with Flat Top.
Summary and next steps
Pick the trailer that fits how you will live, not just what you can tow. Flat Top keeps things simple and budget friendly. Drop Deck buys you head height where comfort matters most. Match the rating to your real finished weight, balance heavy items over axles, and detail brakes and registration for Victorian roads.
Ready to decide, book a Bayswater tour, request trailer drawings with a loft section, and talk through 3T, 3.5T, 4.5T and 10T options with the team. Your tiny home feels better when the base is right from day one.
